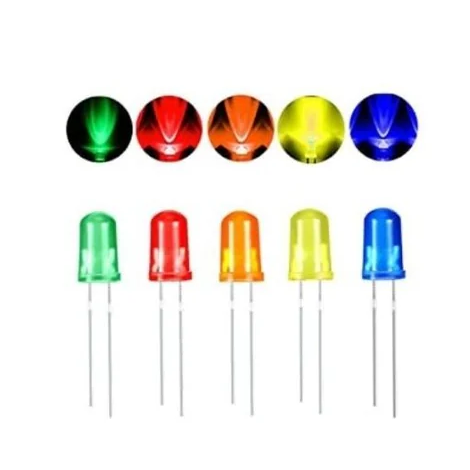

🔍 What is an LED?

A Light Emitting Diode (LED) is a semiconductor device that emits light when current flows through it. Unlike traditional bulbs, LEDs are highly efficient, long-lasting, and produce very little heat.

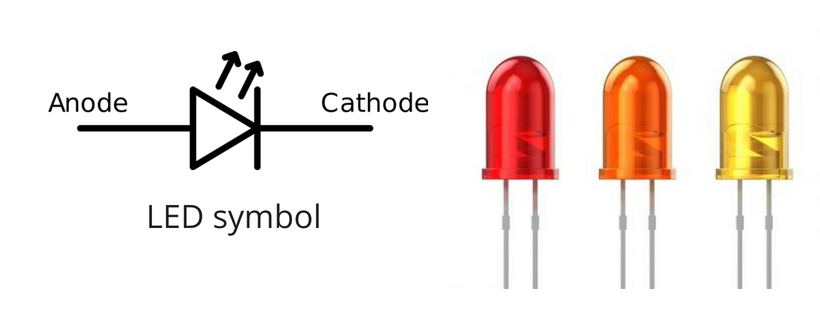

LED Circuit Symbol

Triangle with line and arrows pointing away (representing light emission)

🔧 Identifying LED Polarity

LEDs are polarized components, meaning they only work when connected correctly. Here are several ways to identify which leg is positive (anode) and which is negative (cathode):

Method 2: Flat Edge

• Look at the LED's plastic casing
• The flat edge indicates the negative (cathode) side
• The rounded side is positive (anode)

Method 3: Internal Structure

• Look inside a clear LED
• The larger internal piece is negative (cathode)
• The smaller piece is positive (anode)

Method 4: Multimeter Test

• Set multimeter to diode test mode
• Touch red probe to suspected positive, black to negative
• LED will glow dimly if connected correctly

✅ How to Use LEDs Safely

Step-by-Step Connection

1. Identify LED polarity using methods above
2. Connect resistor in series with LED (order doesn't matter)
3. Connect positive supply to LED anode (longer leg)
4. Connect negative supply to LED cathode (shorter leg)
5. Power on circuit and verify LED lights up

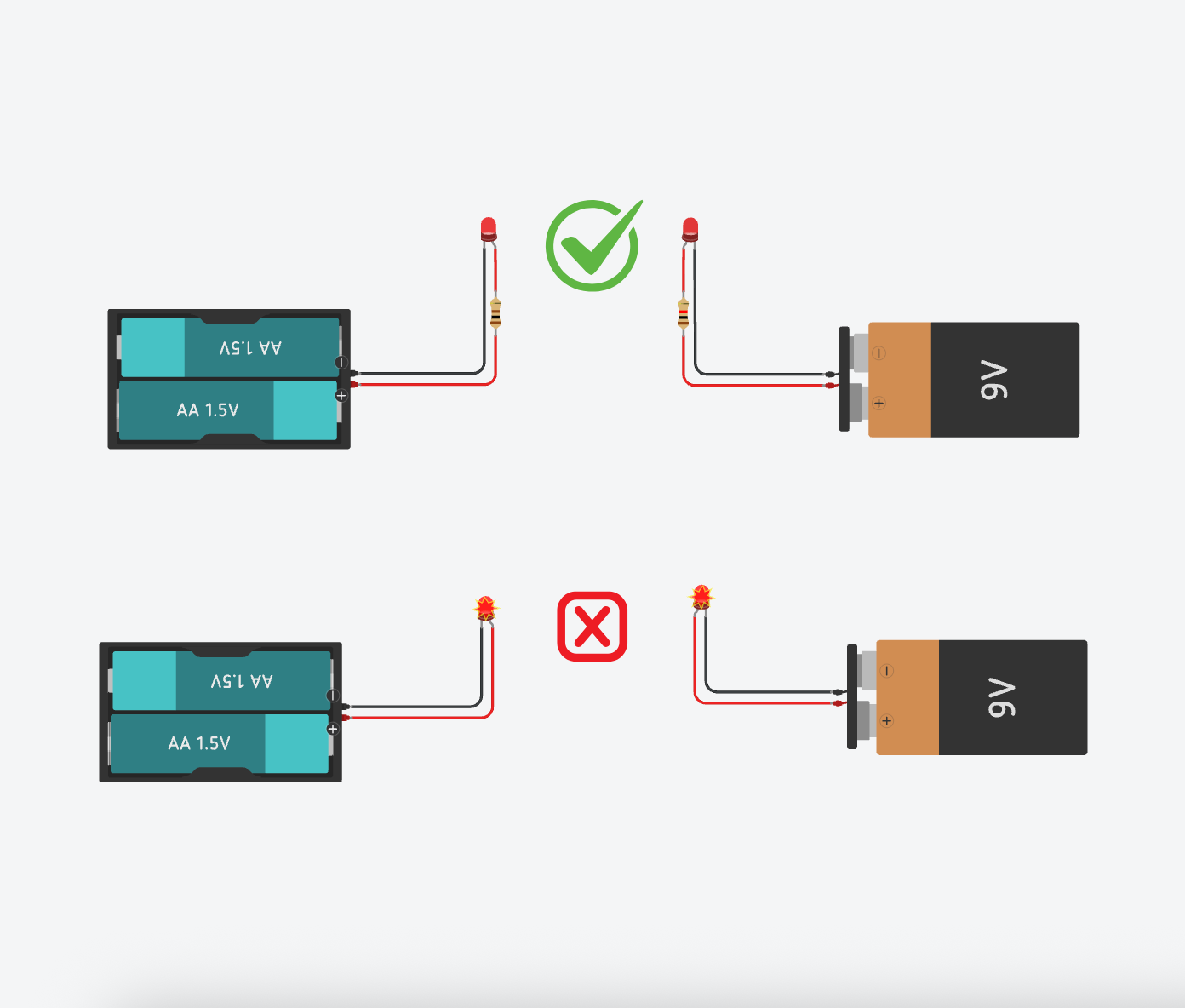

⚠️ Important Safety Precautions

What Happens with Wrong Connections?

• Reverse Polarity: LED won't light up (usually no damage)
• No Resistor: LED burns out immediately
• Too High Current: LED becomes very hot and fails
• Wrong Voltage: Dim light or LED damage

🛠️ Troubleshooting LED Issues

LED Won't Light Up?

• Check polarity - try reversing connections
• Verify battery has power
• Check all connections are secure
• Test LED with multimeter diode function

LED Too Dim?

• Resistor value might be too high
• Battery voltage might be low
• Check for loose connections

LED Gets Hot?

• Current is too high - increase resistor value
• Check circuit for shorts
• Verify correct LED specifications

📚 Ready to Experiment?

Now, you understood LEDs, you're ready to start building! Remember to always use resistors, check polarity, and start with simple circuits before moving to complex projects.

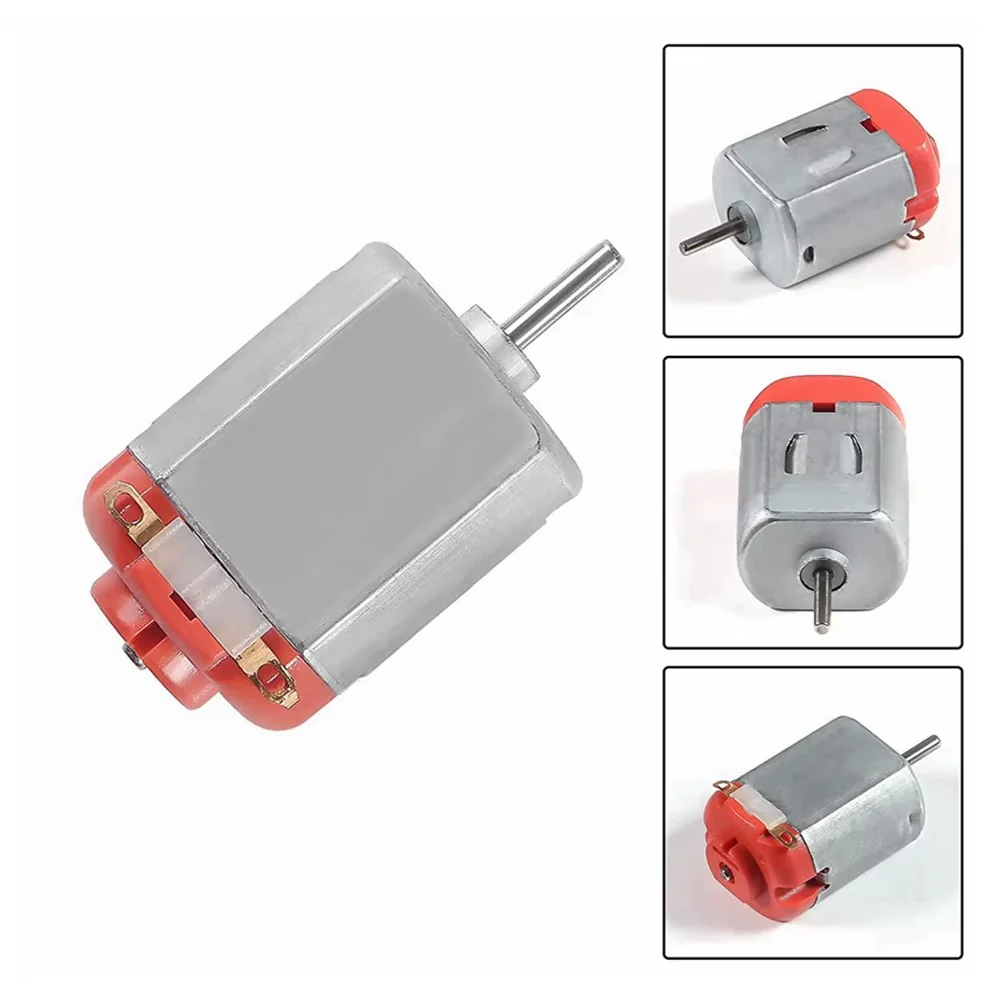

🔋 What is a DC Toy Motor?

A Direct Current (DC) toy motor is a small electric motor that converts electrical energy into mechanical rotational motion. These motors are perfect for building moving projects like fans, cars, robots, and other mechanical devices.

🔄 How to Change Motor Direction

One of the most useful features of DC motors is the ability to reverse their direction by simply changing the polarity of the power supply.

Method 1: Swap Battery Connections

• Clockwise Rotation: Connect positive (+) to one terminal, negative (-) to the other
• Counter-clockwise Rotation: Swap the connections - connect negative (-) to first terminal, positive (+) to second terminal

Method 2: Use a Switch (DPDT Switch)

• Wire a Double Pole Double Throw (DPDT) switch to reverse polarity
• Toggle switch to change direction without rewiring
• This method allows easy direction control in your projects

⚡ Voltage and Speed Control

Voltage vs Speed Relationship

• 1.5V: Slow speed, low torque - good for delicate projects
• 3V: Moderate speed, balanced performance - recommended for most projects
• 4.5V: High speed, maximum torque - for heavy-duty applications
• 6V: Maximum safe speed (do not exceed this voltage)

🔧 Connecting Your Motor

Step-by-Step Connection

1. Identify motor terminals - both can accept positive or negative
2. Connect one wire from battery positive (+) to one motor terminal
3. Connect another wire from battery negative (-) to other motor terminal
4. Power on and observe rotation direction
5. Reverse connections if you need opposite direction

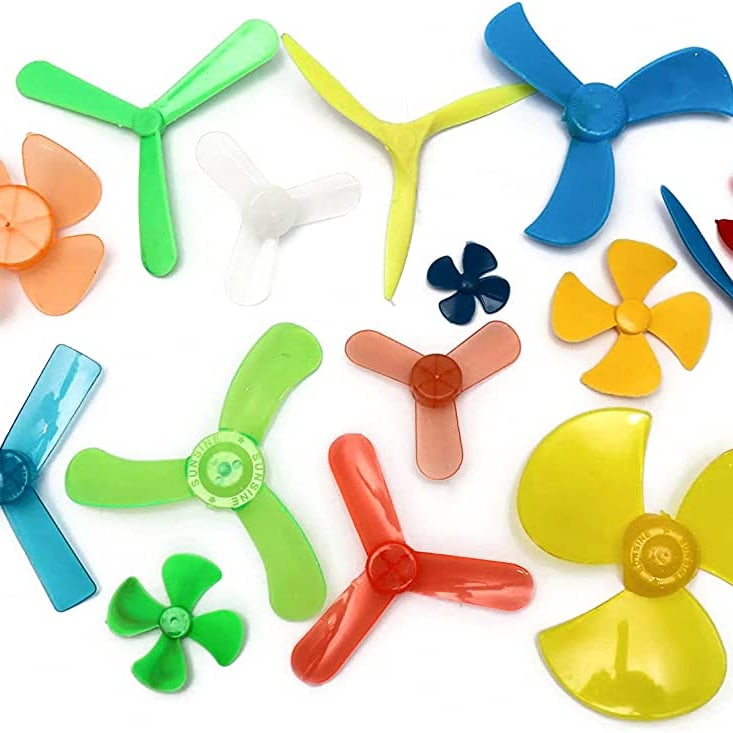

🛠️ Attaching Fan Blades

Proper Fan Installation

• Ensure motor is powered off before attaching fan
• Push fan blade firmly onto the 2mm motor shaft
• Make sure fan is centered and balanced
• Test rotation by hand before powering on
• Secure fan if it becomes loose during operation

⚠️ Important Safety Precautions

✅ What Happens with Wrong Connections?

• Reverse Polarity: Motor runs in opposite direction - usually no damage
• Too High Voltage: Motor overheats, burns out, or catches fire
• Blocked Shaft: Motor draws high current, overheats rapidly
• Wrong Battery Type: Poor performance or no movement

🔍 Troubleshooting Motor Issues

Motor Won't Turn?

• Check battery charge and connections
• Verify all connections are secure
• Ensure motor shaft isn't blocked or jammed
• Test with known working battery
• Check if motor terminals are making good contact

Motor Runs Too Slowly?

• Battery voltage might be too low - use fresh batteries
• Motor might be overloaded - reduce load or friction
• Check for loose connections causing voltage drop
• Clean motor terminals if oxidized

Motor Gets Hot?

• Voltage is too high - reduce to 3-4.5V
• Motor shaft is blocked or has too much resistance
• Running motor for too long - allow cooling breaks
• Check for short circuits in wiring

🚀 Ready to Build Moving Projects?

Now that you understand DC motors, you're ready to create amazing moving projects! Start with simple circuits and gradually build more complex mechanisms.

📳 What is a Vibration Motor?

Small DC motor with offset weight creating vibration effect. Commonly used in mobile phones, toys, and haptic feedback devices. Operates on 3V with low current consumption for instant vibration.

🔧 Connection

1. Connect red wire to positive terminal
2. Connect black wire to negative terminal
3. Apply 3V power for operation
4. Motor creates vibration instantly

🚀 Perfect for Tactile Projects!

Ideal for alert systems, gaming controllers, and adding movement to small projects requiring vibration feedback.

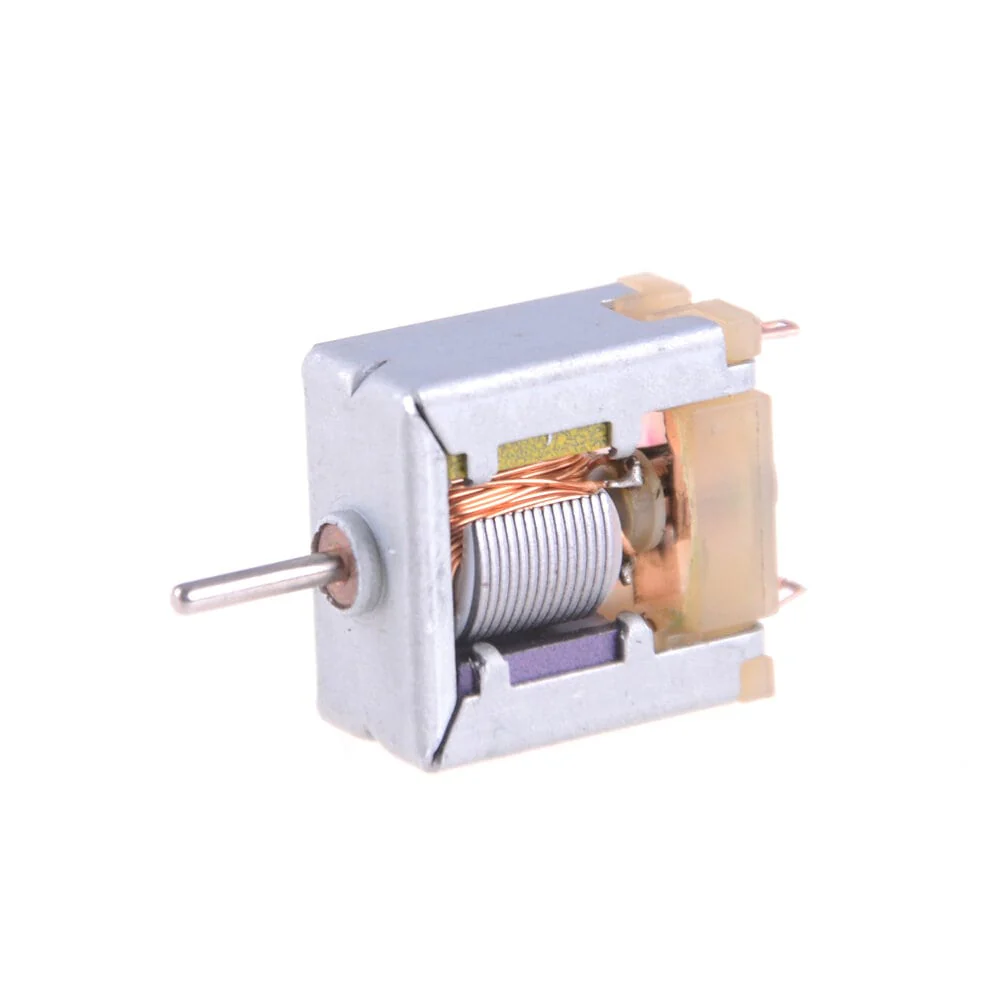

🔍 What is an Open Body Square Motor?

Compact square-shaped DC motor with exposed internal components for educational purposes. Visible brush and commutator design helps understand motor operation principles and mechanics.

🔧 Connection

1. Identify red wire (positive)
2. Identify black wire (negative)
3. Connect to 3-6V power source
4. Observe internal brush operation

🚀 Learn Motor Mechanics!

Perfect for understanding motor operation, robotics education, and projects requiring visible internal workings for demonstration purposes.

⚙️ What is a Long Shaft Motor?

High-torque DC motor with extended shaft for direct coupling to wheels, gears, or mechanical components. Longer shaft eliminates need for couplers in many robotics applications.

🔧 Connection

1. Connect red wire to positive
2. Connect black wire to negative
3. Apply 3-6V for operation
4. Attach wheels/gears directly to shaft

🚀 Perfect for Direct Drive!

Ideal for robotics, conveyor systems, and projects requiring direct mechanical drive without additional coupling hardware.

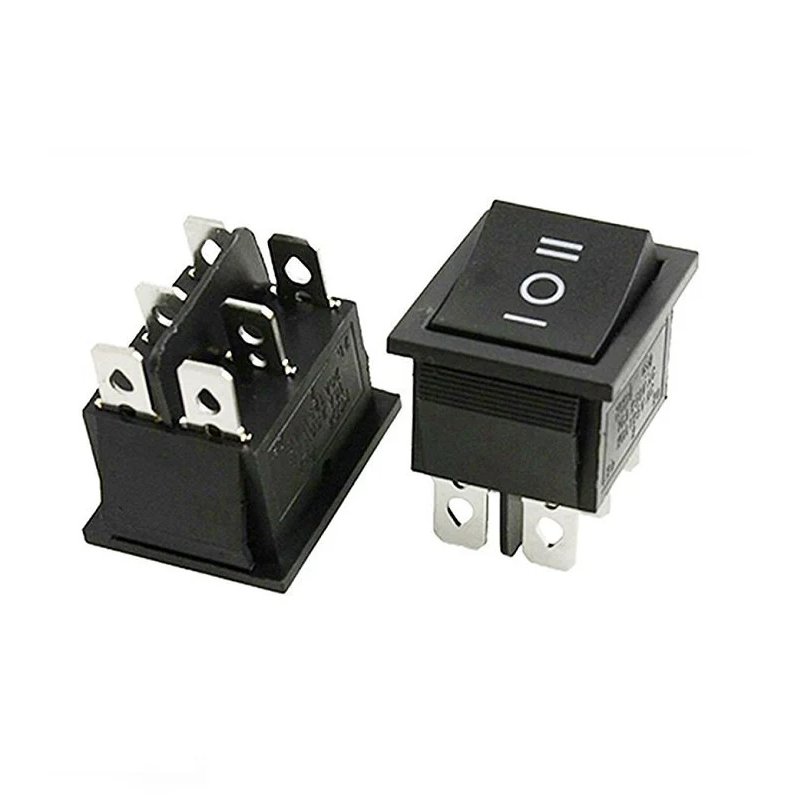

🔄 What is a DPDT Switch?

Double Pole Double Throw switch with six terminals for controlling motor direction. Essential component for bidirectional motor control without rewiring circuits.

🔧 Motor Direction Control

1. Connect motor wires to middle terminals
2. Connect battery positive to one corner terminal
3. Connect battery negative to opposite corner (same side)
4. Flip switch to reverse motor rotation direction

🚀 Bidirectional Control!

Perfect for robotics, fans, and automated systems requiring forward/reverse operation with simple switch action.

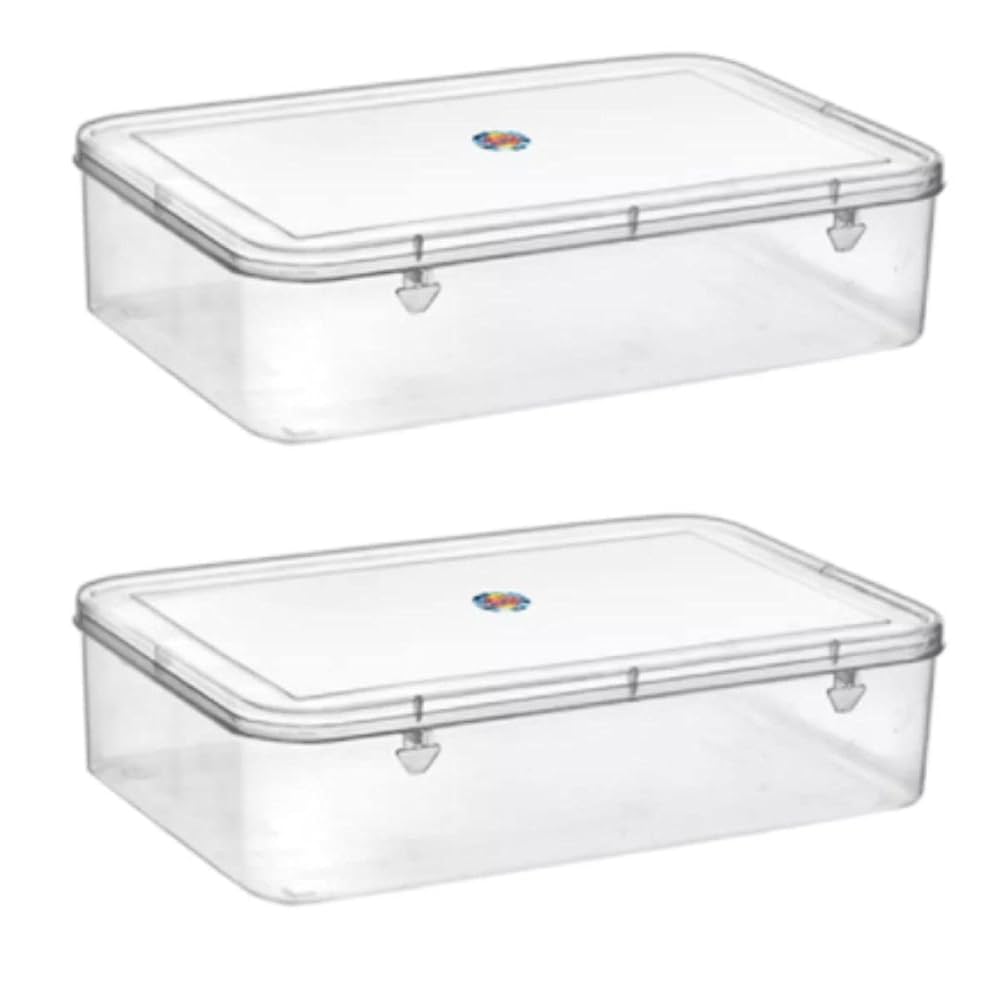

📦 What is a Clear Plastic Box?

Transparent storage container for organizing all electronic components safely. Compartments prevent component mixing and damage during transport while maintaining visibility.

🔧 Organization Tips

1. Sort components by type in separate compartments
2. Keep small parts in secure sections
3. Ensure snap-lock closure before transport
4. Label compartments if needed

🚀 Stay Organized!

Perfect for maintaining organized workspace, preventing component loss, and creating portable electronics kit for projects and experiments.

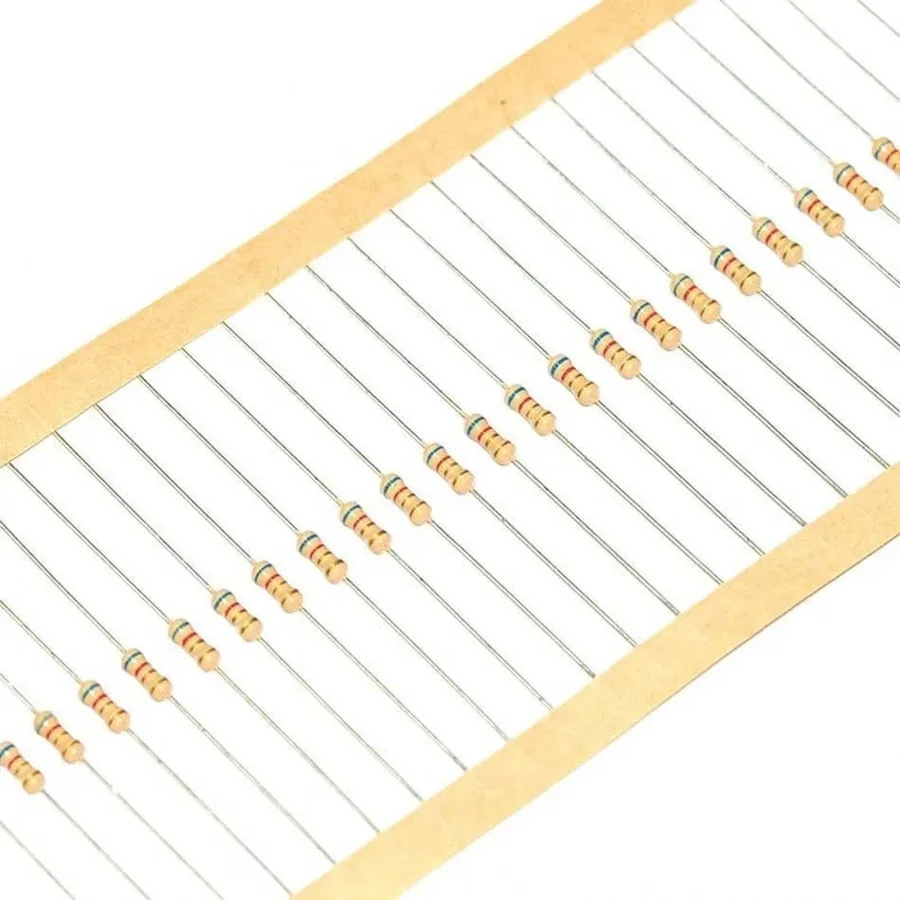

⚡ What is a Resistor?

A resistor is an electronic component that limits or controls the flow of electrical current in a circuit. Think of it like a narrow pipe that controls water flow - resistors control electron flow and protect other components from receiving too much current.

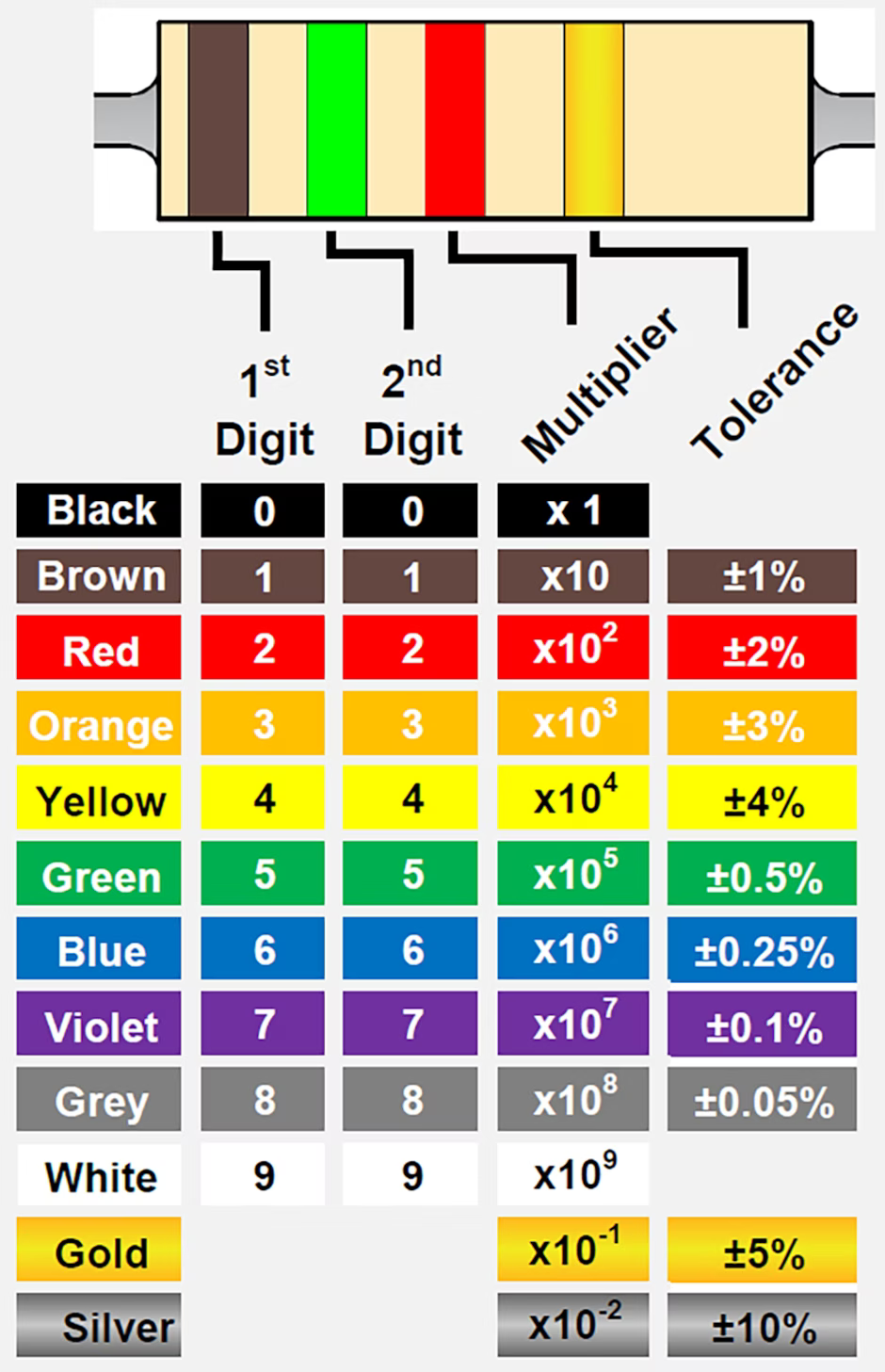

🌈 Color Code Reading Guide

Resistors use colored bands to indicate their resistance value. Most resistors have 4 bands, read from left to right.

4-Band Color Code System

🧮 How to Calculate Resistance Value

Step-by-Step Calculation

1. Hold resistor with tolerance band (gold/silver) on the right
2. Read first band color and note its number value
3. Read second band color and note its number value
4. Read third band (multiplier) and note zeros to add
5. Combine: First digit + Second digit + Multiplier zeros

🔧 Using Resistors in Circuits

When to Use 1KΩ Resistors

• LED current limiting (with 9V supply)
• Pull-up resistors for switches and buttons
• General purpose voltage dividing
• Sensor interfacing circuits
• Timing circuits with capacitors

When to Use 100Ω Resistors

• LED current limiting (with 3V supply)
• Low impedance circuits
• Motor control circuits (with transistors)
• High current applications (within power limits)
• Series resistance for sensors

🔄 Resistor Combinations

Series Connection (End-to-End)

• Total resistance = R1 + R2 + R3...
• Current is same through all resistors
• Voltage divides across resistors

Parallel Connection (Side-by-Side)

• 1/Total = 1/R1 + 1/R2 + 1/R3...
• Voltage is same across all resistors
• Current divides through resistors

⚠️ Important Safety Guidelines

✅ Best Practices

• Always calculate power before connecting: P = I²R or P = V²/R
• Start with higher resistance values for safety
• Never exceed voltage/current ratings
• Resistors are not polarized - can be connected either way
• Keep spare resistors for replacements

🔍 Troubleshooting Resistor Problems

How to Test Resistors

• Use multimeter on resistance (Ω) setting
• Touch probes to resistor ends
• Reading should match color code (within tolerance)
• Infinite reading = open/burned resistor
• Zero reading = short circuit (very rare)

Common Issues

• Burned Out: Resistor turns brown/black, shows infinite resistance
• Wrong Value: Double-check color code reading
• Poor Connection: Ensure solid wire connections
• Overheating: Reduce current or use higher power rating

🚀 Ready to Control Current Flow?

Now you understand how resistors work and can read their values! These components are essential for protecting LEDs, controlling current, and building safe circuits.

🔊 What is a Buzzer?

A buzzer is an electronic audio signaling device that converts electrical energy into sound waves. It's perfect for creating alarms, notifications, and audio feedback in your electronic projects.

⚡ Identifying Buzzer Polarity

Buzzers are polarized components with positive (+) and negative (-) terminals.

Quick Identification Methods:

• Longer terminal: Positive (+) connection
• Shorter terminal: Negative (-) connection
• Surface markings: Look for "+" symbol on buzzer surface
• Wire colors: Red = Positive, Black = Negative

🔌 How to Connect Your Buzzer

Basic Connection Steps:

1. Identify buzzer polarity using methods above
2. Connect positive (+) terminal to battery positive
3. Connect negative (-) terminal to battery negative
4. Power on - buzzer should produce continuous sound
5. Add a switch in series for on/off control

⚠️ Safety Precautions

✅ What Happens with Wrong Connections?

• Reverse Polarity: Buzzer won't work - usually no damage
• Too High Voltage: Buzzer may overheat or burn out
• Insufficient Voltage: Weak or no sound output

🔍 Troubleshooting

Buzzer Won't Make Sound?

• Check polarity - try reversing connections
• Verify battery has sufficient voltage
• Ensure all connections are secure
• Check if sound holes are blocked

Sound Too Quiet?

• Increase supply voltage (within safe limits)
• Check for loose connections
• Clean terminal connections if oxidized

🚀 Ready to Make Sound?

Now you understand buzzers! Start with simple on/off circuits and build more complex sound systems.

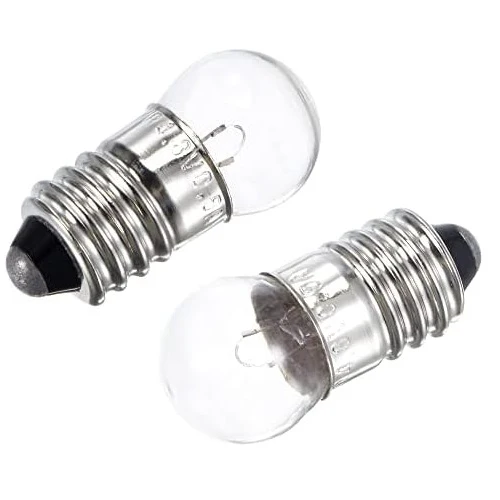

💡 What is an E10 Light Bulb?

An E10 light bulb is a traditional incandescent bulb with a miniature Edison screw base. The "E10" designation means it has a 10mm diameter screw base (actual screw diameter is 9.3mm). Perfect for basic lighting circuits and experiments.

🔧 Using with Light Bulb Holder

Your E10 bulb works with the included light bulb holder for secure mounting and easy connections.

Installation Steps:

1. Screw the E10 bulb firmly into the bulb holder
2. Connect wires to the holder's terminals (no polarity required)
3. Connect positive wire from battery to one terminal
4. Connect negative wire from battery to other terminal
5. Power on - bulb should glow with warm light

⚡ Voltage and Brightness

E10 bulbs are designed for low voltage DC operation. Unlike LEDs, they don't require polarity - they work in either direction.

Voltage vs Brightness:

• 3V: Dim glow, good for indicator lights
• 3.7V: Normal brightness, recommended voltage
• 4.5V: Bright light, maximum safe voltage
• 6V+: Too bright, will burn out quickly

⚠️ Safety Precautions

✅ What Happens with Different Voltages?

• Under-voltage: Dim light, longer bulb life
• Correct voltage: Normal brightness, expected lifespan
• Over-voltage: Very bright, but burns out quickly
• Excessive voltage: Filament burns out immediately

🔍 Troubleshooting

Bulb Won't Light Up?

• Check battery voltage with multimeter
• Verify all connections are secure
• Ensure bulb is screwed in properly
• Test with known working battery
• Check if bulb filament is broken (look inside)

Bulb Too Dim?

• Battery voltage may be too low - use fresh batteries
• Check for loose connections causing voltage drop
• Clean bulb holder terminals if corroded

Bulb Burns Out Quickly?

• Voltage is too high - reduce to 3.7V-4.5V range
• Check for voltage spikes in circuit
• Ensure stable power supply

💡 E10 vs LED Comparison

🚀 Ready to Light Up?

Now you understand E10 bulbs! They're perfect for learning basic circuits before moving to more complex LED projects.

🔧 What is an E10 Bulb Holder?

A socket designed to securely mount and connect E10 light bulbs in circuits. Made of durable plastic with metal terminals for reliable electrical connections.

⚡ How to Use

1. Screw E10 bulb firmly into the holder socket
2. Connect wires to both terminal screws (no polarity)
3. Tighten terminals securely for good connection
4. Mount holder if needed for permanent installation

🚀 Ready to Install?

Perfect companion for E10 bulbs - makes connections easy and circuits more organized!

🌪️ What are Plastic Fans?

Lightweight plastic fan blades that attach to motors to create air circulation for cooling, propulsion, or demonstration projects.

⚡ Installation

1. Ensure motor is powered off
2. Push fan firmly onto 2mm motor shaft
3. Check fan is centered and balanced
4. Test rotation by hand before powering

🚀 Ready to Create Airflow?

Perfect for building fans, propellers, and air circulation projects with your DC motors!

🔧 What are Crocodile Clips?

Spring-loaded metal clips for making temporary electrical connections without soldering. Perfect for prototyping and testing circuits quickly and safely.

⚡ How to Use

1. Squeeze clip handles to open jaws
2. Attach to component terminals or wires
3. Release to secure connection
4. Use color coding (red=positive, black=negative)

🚀 Perfect for Testing!

Ideal for quick circuit assembly, testing components, and temporary connections in school projects.

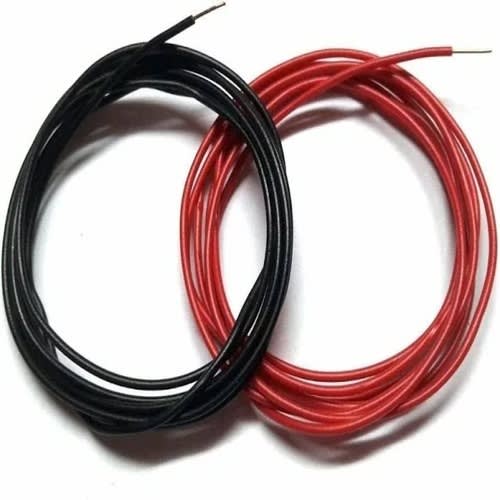

🔌 What are Single String Wires?

Insulated single-core copper wires for making connections between components in circuits. Perfect for breadboard work and circuit prototyping.

🚀 Perfect for Connections!

Ideal for making neat, organized connections between components, breadboards, and terminals in your projects.

🔌 What is Ribbon Cable?

Two-core flat cable with red and black wires for power distribution and neat wiring in electronic projects.

🚀 Perfect for Power!

Excellent for distributing power cleanly with clear polarity marking - red for positive, black for negative connections.

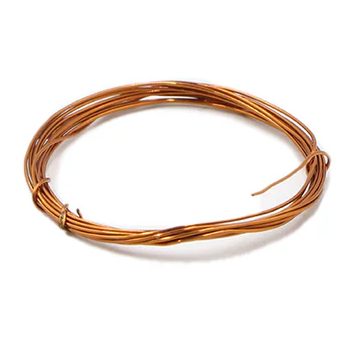

🔌 What is Enamel Copper Wire?

Thin copper wire with enamel insulation coating, perfect for making electromagnets, coils, and transformers in science experiments.

🚀 Perfect for Coils!

Essential for winding electromagnets around nails, creating inductors, and building simple motors and generators.

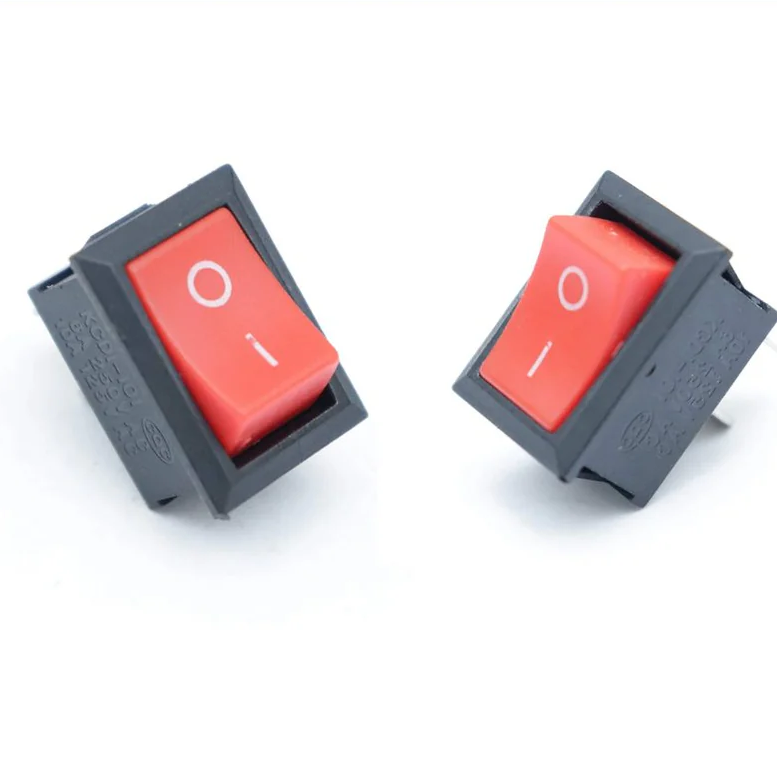

🔘 What is a Mini Rocker Switch?

Small toggle switch that rocks back and forth to turn circuits on and off. Perfect for compact projects requiring power control.

🚀 Perfect for Small Projects!

Ideal for controlling power in compact circuits, LED strips, small motors, and electronic devices.

🔘 What is a Big Rocker Switch?

Larger rocker switch for easy operation and controlling higher current circuits. Built for durability and frequent use.

🚀 Perfect for Heavy Duty!

Excellent for controlling high-power devices, main power switches, and applications requiring easy operation.

🔘 What is a Sliding Switch?

Switch that slides horizontally to make or break electrical connections. Smooth operation with clear position indication.

🚀 Smooth Operation!

Perfect for mode selection, power control, and applications where smooth sliding action is preferred.

🔋 What is a 9V Battery?

A compact rectangular battery delivering 9 volts of electrical energy. Features distinctive snap connectors and contains six 1.5V cells in series. Perfect for powering electronic circuits, motors, and devices requiring higher voltage.

⚠️ Safety Precautions

🚀 Perfect Power Source!

Ideal for motors, buzzers, LED circuits, and any project requiring reliable 9V power supply. Use with battery connector for easy replacement.

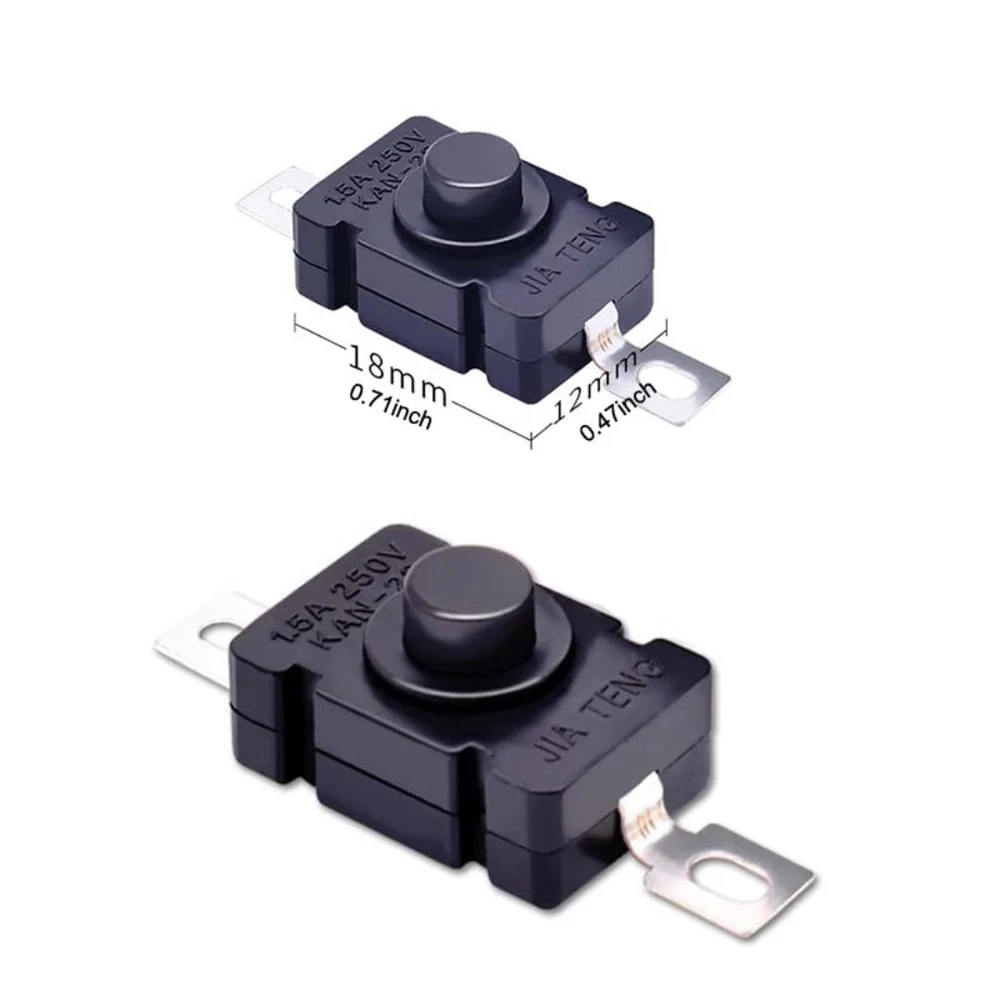

🔘 What is a Tactile Switch?

Push-button switch that makes and holds connection once pressed. When it is pressed again, it breaks the connection. Perfect for user input and control in electronic projects.

🚀 Perfect for Control!

Ideal for user input, torch light, indicators, traffic lights...

🔋 What is a 9V Battery?

A compact rectangular battery delivering 9 volts of electrical energy. Features distinctive snap connectors and contains six 1.5V cells in series. Perfect for powering electronic circuits, motors, and devices requiring higher voltage.

⚠️ Safety Precautions

🚀 Perfect Power Source!

Ideal for motors, buzzers, LED circuits, and any project requiring reliable 9V power supply. Use with battery connector for easy replacement.

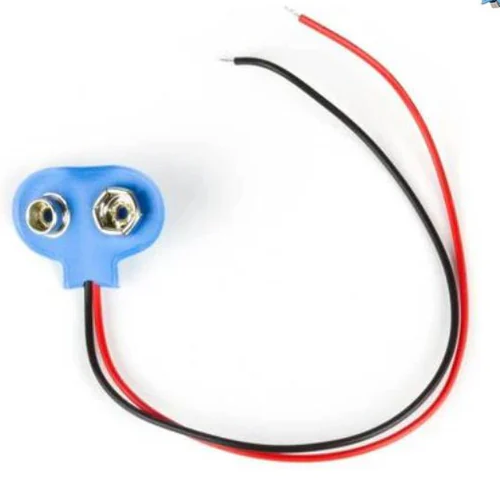

🔌 What is a Battery Connector?

Snap-on connector that easily attaches to 9V batteries for powering circuits. Features color-coded wires and secure snap terminals for reliable connection.

🔋 How to Connect

1. Align connector with battery terminals
2. Press firmly until snap clicks
3. Connect red wire to circuit positive
4. Connect black wire to circuit negative

🚀 Easy Power Connection!

Makes battery replacement simple without soldering. Essential for portable projects and easy circuit testing.

🔋 What is an AA Battery Holder?

Holder for two AA batteries with connecting wires, providing 3V total power (1.5V × 2). Alternative power source for low-voltage projects and circuits requiring moderate current.

🔧 Installation

1. Insert AA batteries following polarity markings
2. Ensure positive (+) and negative (-) alignment
3. Connect red wire to circuit positive
4. Connect black wire to circuit negative

🚀 Reliable 3V Power!

Perfect for LED circuits, small motors, and low-voltage projects. AA batteries are widely available and long-lasting.

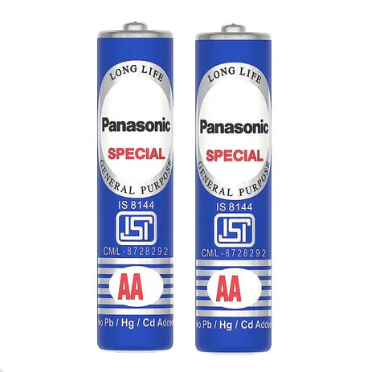

🔋 What are AA Batteries?

Two premium AA alkaline batteries from trusted brands like Panasonic, Nippo, or Everyday. Each provides 1.5V power with long-lasting performance for your electronic projects and devices.

🔧 Battery Identification

1. Positive (+): Raised button terminal at top
2. Negative (-): Flat terminal at bottom
3. Check battery body for + and - markings
4. Insert following device polarity indicators

🚀 Reliable Power Source!

Quality alkaline batteries ensuring consistent performance for your projects. Perfect for battery holders, remote controls, and portable devices.

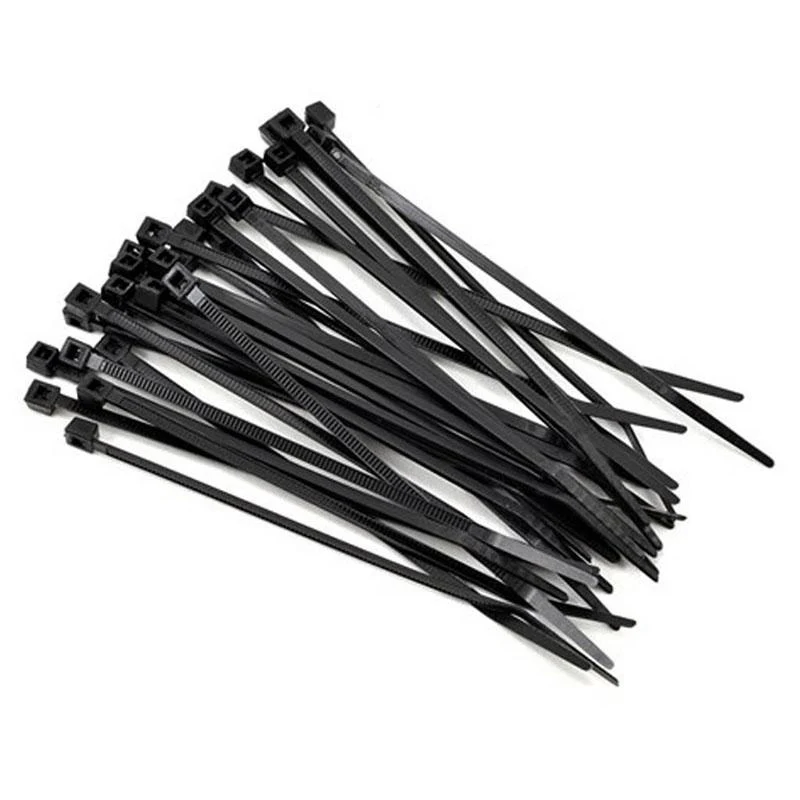

🔧 What are Cable Ties?

Plastic zip ties for organizing and securing wires, keeping projects neat and professional. Self-locking design provides secure hold once tightened.

🔧 How to Use

1. Bundle wires or components together
2. Thread pointed end through lock head
3. Pull tight to desired tension
4. Trim excess length if needed

🚀 Keep It Organized!

Essential for professional-looking projects. Prevents wire tangles and makes troubleshooting easier.

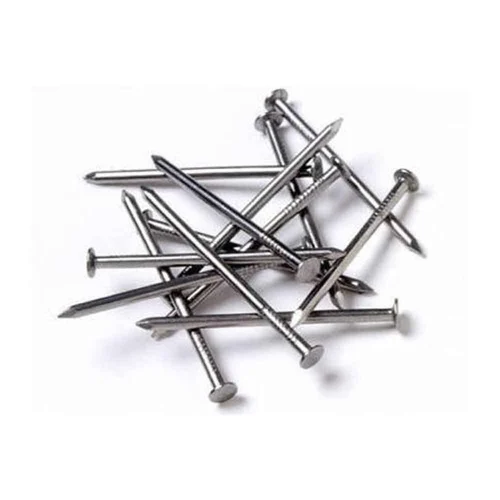

🧲 What is the Iron Nail For?

Ferromagnetic nail that becomes magnetized when current flows through wire coiled around it. Essential for building electromagnets and demonstrating magnetic principles.

🔧 Making an Electromagnet

1. Wrap enamel copper wire around nail (50+ turns)
2. Leave wire ends free for connections
3. Connect to battery through switch
4. Test magnetic field with paper clips

🚀 Magnetic Experiments!

Perfect for demonstrating electromagnetism, building simple motors, and exploring magnetic field principles in science projects.

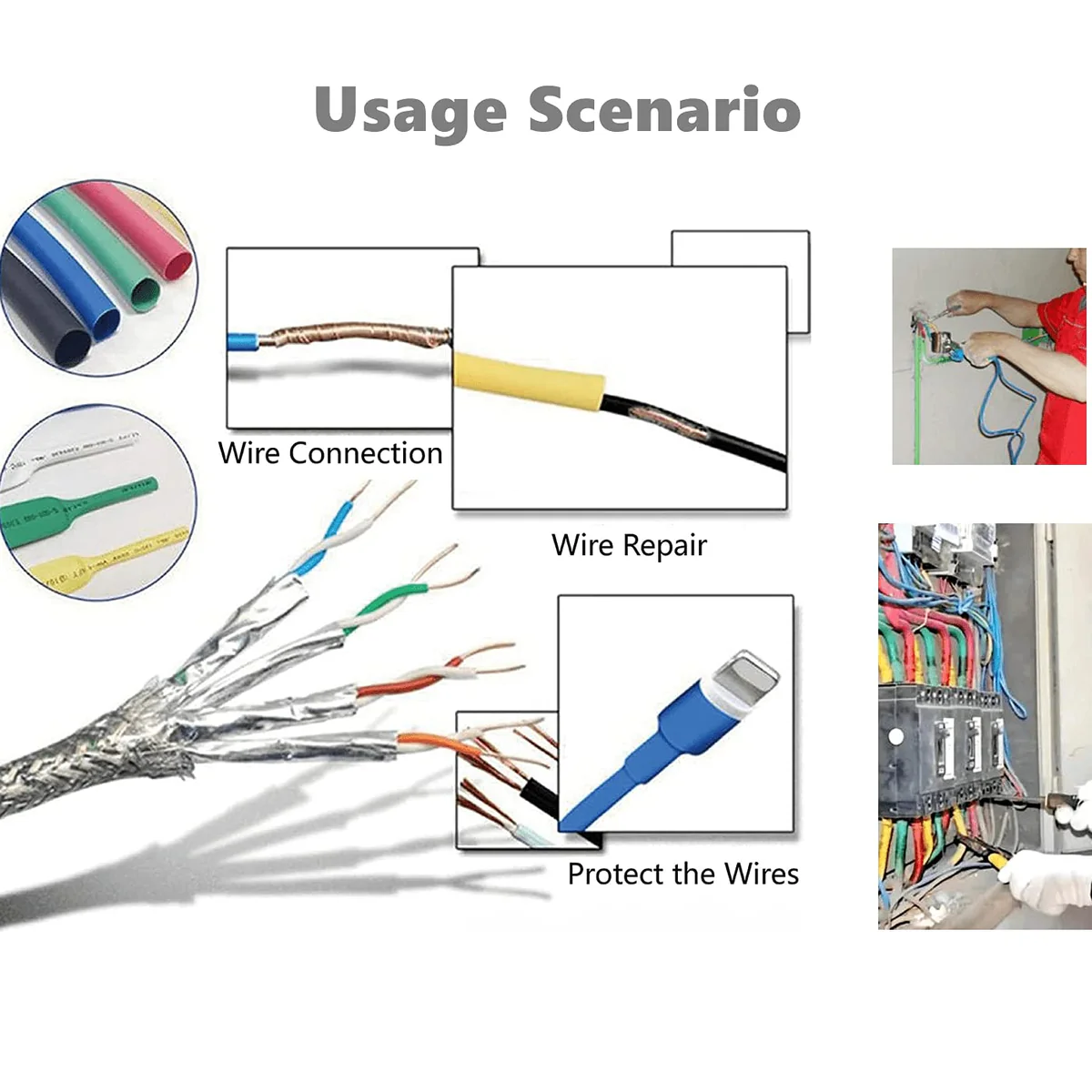

🔌 What is Heat Shrink Sleeve?

Protective tubing that shrinks when heated to insulate wire connections. Kit includes 5 pieces of 2cm sleeves in random colors and diameters for various wire gauges.

🔋 How to Use

1. Slide sleeve over wire before connecting
2. Make your wire connection/solder joint
3. Position sleeve over connection
4. Apply heat with hair dryer or heat gun

🚀 Professional Wire Protection!

Insulates connections, prevents short circuits, and provides strain relief. Essential for clean, safe wiring in electronics projects.

🏆 Steps to Grab Your Free Certificate

1. Scan the QR Code: Use any QR scanner app to scan the QR code present inside the kit (e.g., Google Lens, Paytm, PhonePe) to open the certificate link.
2. Fill in Your Details: Enter the information you'd like to appear on your certificate. Your certificate will be generated instantly.
3. Access Anytime: Simply scan the same QR code again to view or download your certificate anytime.
